SOLD OUT

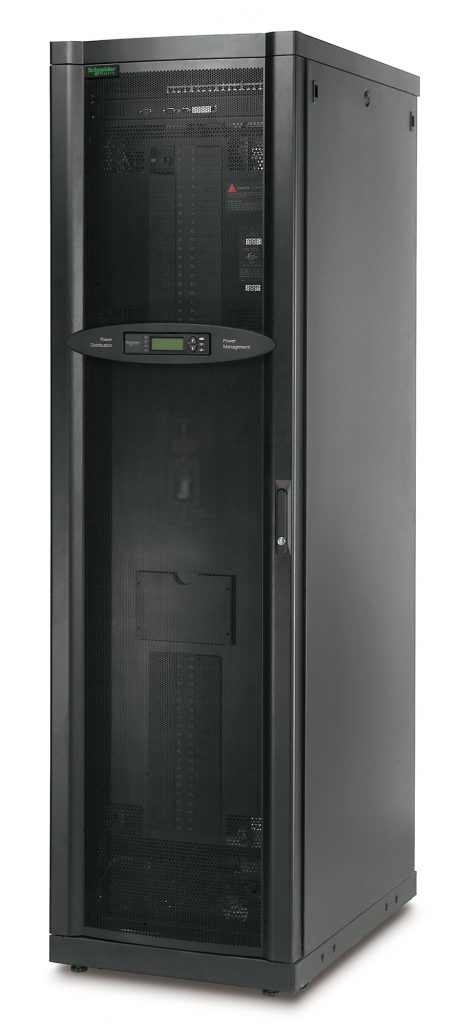

InfraStruxure PDU 60kW 600V/208V
-
Designed to increase flexibility and agility of data center power distribution through a design that does not require a raised floor.
-
Includes: Installation Guide, User Manual
InfraStruxure PDU 60kW 600V/208V
PD60L6FK1 Features
InfraStruxure PDU 60kW 600V/208V
Designed to increase flexibility and agility of data center power distribution through a design that does not require a raised floor.
Includes: Installation Guide, User Manual
- Load Test Port
Load test port provides simple connection for full testing of a Symmetra PX UPS
- Local and web-based monitoring
Status available to customers both in the data center and remotely
Configurable Power Distribution Features & Benefits
Serviceability
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Availability
Wide Range of Applications
Configure-to-order process allows APC to configure, install, and test complete system before shipping
Total Cost of Ownership
Circuit Breaker Panel
Provides breaker positions for distribution to racks and power zones
Reduced footprint
Minimizes your real estate expenses using the aesthetic APC™ NetShelter™ IT enclosure form factor
System mobility
Power distribution units can easily be relocated to accommodate a changing data center environment.
Marketing Features
Alarm Thresholds
Current Transformers on each circuit that can provide amp ratings on each circuit position to prevent circuit breaker overloads
Wide Range of Applications
Configure-to-order process allows APC to configure, install, and test complete system before shipping
Local and web-based monitoring
Status available to customers both in the data center and remotely
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Output
Nominal Output Voltage
120V, 208V 3PH
Maximum Total Current Draw
167
Input
Nominal Input Voltage
600V 3PH
Input frequency
60 Hz +/- 3 Hz
Number of Power Cords
1
Maximum Line Current
58A
Physical
Maximum Height
81.0inches (2057MM, 205.7CM)
Maximum Width
24.0inches (610MM, 61.0CM)
Maximum Depth
35.98inches (914MM, 91.4CM)
Net Weight
1012.0lbs. (460.0KG)
Shipping weight
1034.0lbs. (470.0KG)
Shipping Height
86.0inches (2184MM, 218.4CM)
Shipping Width
36.0inches (914MM, 91.4CM)
Shipping Depth
48.0inches (1219MM, 121.9CM)
Color
Black
Environmental
Operating Temperature
32 - 104 °F (0 - 40 °C)
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3333ft (0-999.9meters)
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-30000ft (0-9000meters)
Conformance
Approvals
UL 60950
Standard warranty
1 year repair or replace
