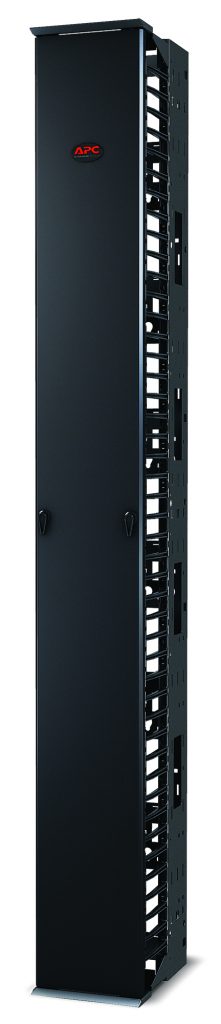

Performance, Vertical Cable Manager for 2 & 4 Post Racks, 84"H x 10"W, Single-Sided with Door
This 10” wide, high capacity vertical cable manager for 2 and 4 Post open frame racks features a single-sided cable channel with multiple internal cable tie-off locations and smooth plastic fingers at 1U increments for organized patching applications.
Includes: Doors, Installation guide, Mounting hardware
- Cable management tie-off backplate
Backplates feature multiple mounting holes for toolless accessory installation of vertical Rack PDUs and cable management accessories such as hook-and-loop cable managers for cable tie-off (AR8621) and fiber spools for excess fiber slack management (AR8444).
- Cable protection
Smooth plastic fingers provide proper bend radius.
- Grounding connection
Grounding connection point (hardware not provided) on left and right side of cable channel provides location for grounding the vertical cable manager.
- High capacity cable finger design
Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
- Horizontal cable routing front-to-back
Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
- Similar look-and-feel to NetShelter™ enclosures
Contoured and powdercoat design of the vertical cable manager door and matching enclosure placard provide a clean and consistent look with NetShelter enclosures.
- Slam-to-latch full length door
Door installs quickly without tools and is provided with two easy to use latches that allow the door to open to the left or right.
- Toollessly mount vertical Rack PDUs
Backplates feature several mounting location positions allowing Rack PDUs to be toollessly installed with the vertical cable manager channel or on the backside.
- Vertical cable managers ship fully assembled
Vertical cable managers ship fully assembled reducing the amount of time required to install equipment.
