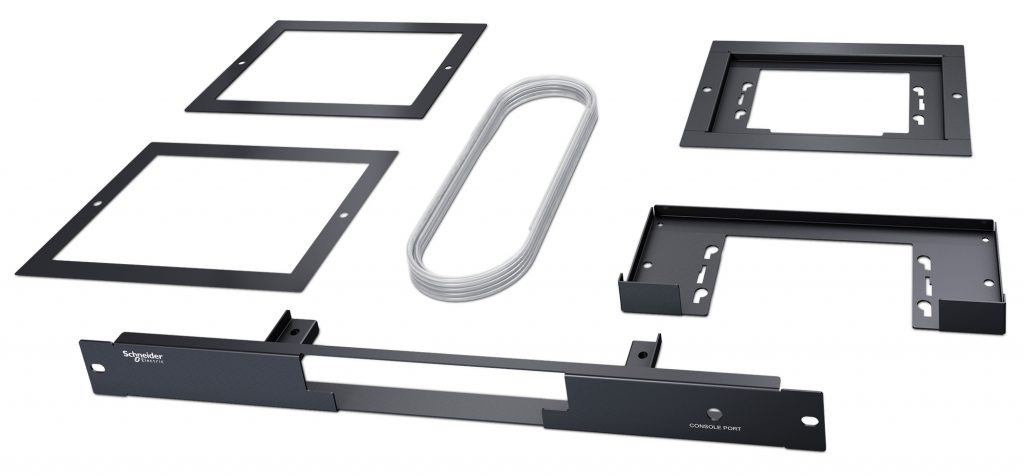

Mounting Kit, 1U / Duct – Active Flow Controller | ACAC22001
- Hot and cold air containment systems designed to maximize cooling predictability, capacity, and efficiency at the rack, row or room level.
Mounting Kit, 1U / Duct – Active Flow Controller | ACAC22001
ACAC22001 Features
Mounting Kit, 1U / Duct - Active Flow Controller
Hot and cold air containment systems designed to maximize cooling predictability, capacity, and efficiency at the rack, row or room level.
Thermal Containment Features & Benefits
Adaptability
Modular strategy
Modular design of the mechanical and control systems allow for gradual build-up of the cooling infrastructure to match the cooling demand of the facility. This greatly reduces CAPEX expediture and provides deferred investment throughout the life of the facility.
Air Return System
Centralized hot air return system for room and external air handling systems minimize obstruction of lighting into the aisle and provide cable access from within the contained aisle.
Flexibility
Support for varying aisle widths, rack heights, rack depths, and single rows. Supports hot and cold aisle containment
Agility
Safe Slide Doors
Emergency break away sliding door enables quick exit in the event of an emergency
Ceiling tiles
Closes off the top of the aisle to prevent mixing of the hot and cold airstreams in the IT environment.
Fire Safe System
Alerts personnel and drops ceiling panels based on temperature to enable fire suppressions system in the room to extinguish the fire. UL723s listed.
Modular design
Modular design provides scalable solutions to add cooling as demand increases.
One-way locking door
Secures the hot aisle while allowing for quick exit in case of emergency.
Total Cost of Ownership
Efficiency
Increases the capacity of the air conditioner by supplying a warmer return air temperature.
EcoLEDgy Driven Lighting
Integrated high efficiency LED lighting with on/off motion sensors
Active Airflow Control
Monitors and actively adjust cooling unit airflow in containment systems, while providing visibility to effective cooling to critical IT equipment.
Availability
Scalable densities
Allows for higher densities to be achieved by integrating containment with room, row and rack cooling system architectures.
Over Aisle Access
Tooless removal of individual panels to allow access above the aisle for cabling and maintenance
Physical
Maximum Height
3.2inches (81mm, 8.1CM)
Maximum Width
22.3inches (566mm, 56.6CM)
Maximum Depth
13.4inches (340mm, 34.0CM)
Net Weight
4.66lbs. (2.12KG)
Shipping weight
4.66lbs. (2.12KG)
Shipping Height
3.2inches (81mm, 8.1CM)
Shipping Width
22.3inches (566mm, 56.6CM)
Shipping Depth
13.4inches (340mm, 34.0CM)
