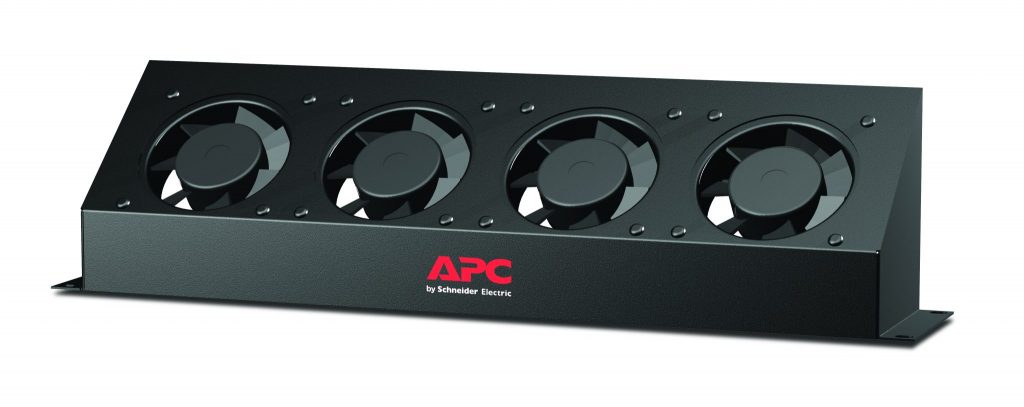

NetShelter 2U Rack Fan Panel | ACF600
-
Air distribution systems for power dense racks and low pressure areas
-
Includes: Installation guide
NetShelter 2U Rack Fan Panel | ACF600
ACF600 Features
NetShelter 2U Rack Fan Panel
Air distribution systems for power dense racks and low pressure areas
Includes: Installation guide
- Fault-tolerant fan system
In the event of a fan failure, the remaining fan(s) will continue to operate.
- Increases Airflow
Provides proper intake temperatures, increasing equipment life.
- Variable Speed Control
Controls fan speed based on temperature with selectable set points.
Rack Air Distribution Features & Benefits
Agility
Easy to install
Innovative design allows for fast, easy installation by almost anybody.
Availability
Increases Airflow
Provides proper intake temperatures, increasing equipment life.
Input
Input frequency
60 Hz
Input Connections
NEMA 1-15P
Number of Power Cords
1
Physical
Maximum Height
3.5inches (89mm, 8.9CM)
Maximum Width
19.0inches (483mm, 48.3CM)
Maximum Depth
5.0inches (127mm, 12.7CM)
Rack Height
2U
Net Weight
2.42lbs. (1.1KG)
Shipping weight
2.97lbs. (1.35KG)
Shipping Height
5.25inches (133mm, 13.335CM)
Shipping Width
20.75inches (527mm, 52.705CM)
Shipping Depth
5.25inches (133mm, 13.335CM)
Environmental
Audible noise at 1 meter from surface of unit
32.0dBA
Conformance
Standard warranty
1 year repair or replace
Sustainable Offer Status
REACH
REACH: Contains No SVHCs
General
Air Flow
135.0CFM (63.72lps)
