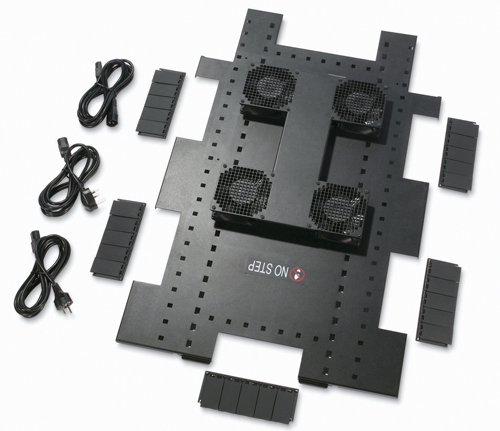

Roof Fan Tray 208/230VAC 50/60HZ for NetShelter SX 750mm Wide x 1070mm Deep Enclosures | ACF504

The Rack Fan Tray is a low cost solution that aids in heat removal from a Netshelter Enclosure. The system easily installs into the top of the enclosure and expels…
Includes: Installation Guide

Product Overview
Technical Specifications

ACF504 Features

Roof Fan Tray 208/230VAC 50/60HZ for NetShelter SX 750mm Wide x 1070mm Deep Enclosures

The Rack Fan Tray is a low cost solution that aids in heat removal from a Netshelter Enclosure. The system easily installs into the top of the enclosure and expels heat from the roof of the rack. Wall-mounted enclosures have the additional option of installing the rack fan tray systems in the base of the rack as well. The fan trays are designed to promote bottom to top airflow within the enclosure.

Includes: Installation Guide

Fan guards
A safety measure that provides protection from the fan opening by covering the inlet.
Promotes Proper Airflow
Helps to maintain proper rack temperatures within the enclosure by promoting top to bottom airflow movement.

Rack Air Distribution Features & Benefits

Easy to install

Innovative design allows for fast, easy installation by almost anybody.

Increases Airflow

Provides proper intake temperatures, increasing equipment life.

Nominal Input Voltage

208V, 230V

Input frequency

50/60 Hz

Input Connections

British BS1363A, IEC-320 C14, Schuko CEE 7/7P

Number of Power Cords

Maximum Height

2.36inches (60mm, 6.0CM)

Maximum Width

28.5inches (724mm, 72.4CM)

Maximum Depth

35.16inches (893mm, 89.3CM)

Net Weight

22.5lbs. (10.23KG)

Shipping weight

30.8lbs. (14.0KG)

Shipping Height

6.5inches (165mm, 16.5CM)

Shipping Width

36.0inches (914mm, 91.4CM)

Shipping Depth

39.0inches (991mm, 99.1CM)

Color

Black

Audible noise at 1 meter from surface of unit

62.0dBA

Approvals

CSA C22.2 No. 60950, PSE, UL 60950

Standard warranty

2 years repair or replace

RoHS

Compliant

Air Flow

440.0CFM (207.66lps)
